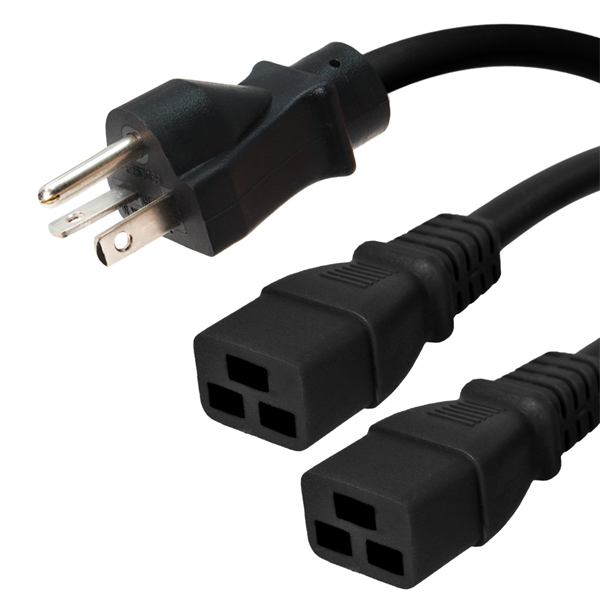

4 Foot Two Way Splitter Cable – 5-20P Plug to 2x C19 Connectors – 12/3, 20A, 125V

Plug two male C20 plugs into two C19 receptacles

SKU: IBX-2X2714-04

Y Splitter – NEMA 5-20P Plug to Two C19 Connectors, 4 Foot

   Email [email protected] for quantity discounts or a quote


Overview

NEMA Splitter power cord allows you to split a 5-20P plug into two C19 receptacles.  Cable is 4 foot in length with 2 foot legs, with a flexible 12/3 SJT jacket rated for 20 amps, 125V.


Features

  • NEMA 5-20P plug to 2x C19 connectors
  • 4 Foot Length
  • SJT jacket
  • Rated for 20 Amps and 125 Volts
  • 12/3 AWG wire

Specifications

Plug     5-20P
Connector C19 x 2
Voltage 125V
Amperes 20A
Length 4 Foot
Jacket Type 12/3 SJT
Color Black

  * SJT jacket is thicker but less flexible compared to the SVT jacket.

  UL and CSA Listed, ROHS approved


Application Shots

splitter power cord 5-20 to c19
