RCS-1824 – 18U x 24 in. depth configured rack designed for use in residential installations.
RCS-1824 ESSEX by Middle Atlantic Configured Rack
MAP# RCS-1824 Questions? Email us at [email protected]
Overview
The Essex RCS-1824 rack enclosure is the complete solution for storing a high-end audio/video residential system. The RCS comes complete with removable locking side panels, rear access panel, front and rear adjustable rack rail, and a glass door. The fully welded steel construction is built to last with a load capacity of 500 pounds and also includes a cooling system on the top of the rack system as well as a cable management grommet. Ships assembled to save time. UL listed and seismic certified.
Features
- Removable locking side panels, rear access panel, and glass door
- Racking height is 18U (31.50 in.)
- Complete with (2) 95 CFM Fans for active cooling
- One pair of adjustable 10-32 rack rails
- Locking swivel casters and leveling feet
- Includes (3) 2U shelves (16 in. deep)
Specifications Click for technical details and drawings:
| Overall Height | 38.625 in. |
| Usable Height | 31.50 in. (18U*) |
| Total Depth | 24 in. |
| Load Capacity | 500 lbs |
| Outer Width | 23.625 in. |
| Rack Rails | Pair of 10-32 |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
All shelves and panels are pre-installed

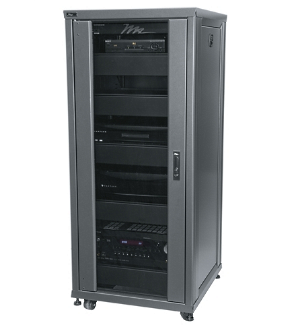

Application Shots
