1 foot L6-20P plug adapters allow you to plug devices with an L6-15P plug into a L6-20R outlet
NEMA L6-20P Power Cord Plug Adapters – 15A, 250V
If you have questions or need a quote, please email us at [email protected]
Overview
Use a L6-20P pigtail power adapter to plug an electronic device with an L6-15 power plug on its power cord into a locking L6-20R power strip or wall outlet. Made of heavy-duty commercial grade nylon plugs and connectors, heavy-gauge oil and water resistant SJOOW cable.
.jpg){kind=small}
Features
- NEMA L6-20P plug to the following connectors:
- L6-15R
- 1 foot length
- Rated for 15 Amps, 250V
- Locking style
- 14/3 AWG 3-conductor wire
- Heavy-duty SJT jacket
Specifications
| Male Plug | L6-20P |
| Female Connectors | L6-15R |
| Amperage | 15 Amps |
| Voltage | 250V |
| Pins | Locking |
| Wire Gauge | 14 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/socket allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817
Aka: L6-20P to L6-15R plug adapter, L6-20 L6-15 pigtail, Adapt an L6-20 plug

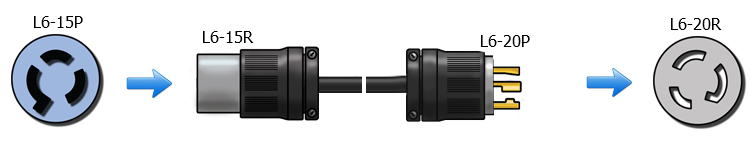

Application Shots
.jpg)
