Control up to 4 fans to regulate the internal temperature inside your rack enclosure.

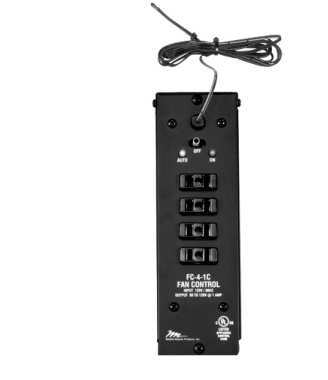

Middle Atlantic FC-4 Thermostatic Fan Controller
MAP# FC-4 Questions? Email us at [email protected]
Overview
Use Middle Atlantic’s FC-4 to control the thermal environment inside your rack enclosure. Middle Atlantic’s thermostatic fan controllers have 3 temperature ranges and can be set to activate proportional to the temperature inside the rack or be set to turn on the fans full power when the set temperature threshold is reached. The FC-4 is designed to mount into Middle Atlantic’s MPR series raceway and has 4 fan outlets.
Features
- Mounts in MPR series raceway
- Controls 4 fans
- Temperature sensing probe included
- Control fan speeds proportional to rack temperature
- Extends both fan and equipment life
- Can be controlled via local switch
- LEDs indicate settings: On, off, or auto
- LEDs indicate fan speed setting
- 18-gauge steel construction
- Flat black powder coat finish
- UL listed
Specifications Technical Details and Drawings:
| Outlets |
4 – NEMA 1-15R (2 prong) Outlets |
| Power Output | 30 – 129VAC at 1.5 Amp |
| Power Input | 120VAC – 60 Hz |
| Temperature Ranges | 80°F – 90°F; 85°F – 95°F; 90°F – 100°F |
| Material | 18-gauge Steel |
| Finish | Flat Black Powder Coat |
Thermal Cooling Calculator for Racks
Application Shots
Front View: Side View:
