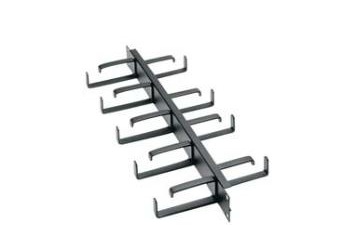

Middle Atlantic HCM-1DR “D-Ring” Cable Manager

      MAP# HCM-1DR    Questions? Email us at [email protected]

   Overview

Use Middle Atlantic’s “D-Ring” style cable managers to organize rack cabling. The HCM-1DR can organize up to 200 ethernet cables.  Recommended capacity for “D-Ring” style cable managers is 50% or 100 ethernet cables (50 cables – front / 50 cables – rear). Each horiztonal cable manager is constructed of welded steel with a black powder coat finish.

   Features

• 1U racking spaces

• Compatible with 19 in. racks

• 5 “D-Rings” on front panel

• 4 “D-Rings” on rear panel
• Recommended 50% capacity manages up to 100 ethernet cables

   Specifications       Technical Details and Drawings:

*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm

**Note: 50% fill capacity recommended

   Application Shots

    Front Panel Rings:                  Rear Panel Rings:

 50 Cables @ 50% Capacity           50 Cables @ 50% Capacity
