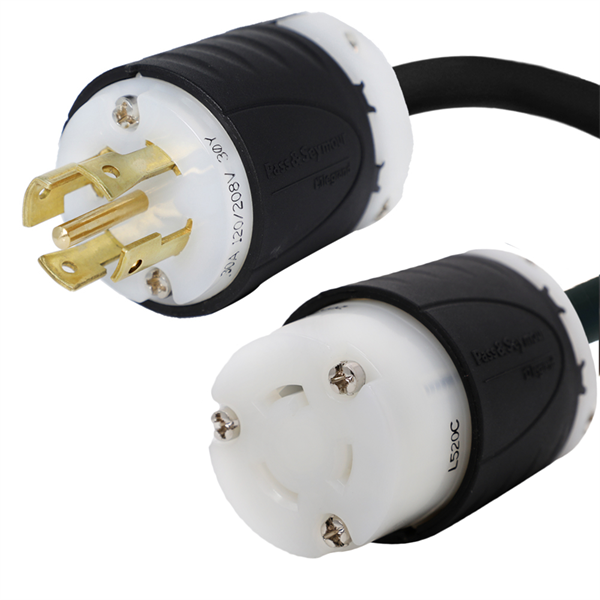

NEMA L21-30P to L5-20R Power Adapter Cables
NEMA L21-30P Power Cord Plug Adapters – 20A, 120V
.jpg)
If you have questions or need a quote, please email us at [email protected]
Overview
Convert a NEMA locking L5-20P plug to fit a NEMA L21-30 Locking receptacle. Made of heavy-duty commercial grade nylon plugs and connectors, heavy-gauge oil and water resistant SJOOW cable.
.jpg){kind=small}

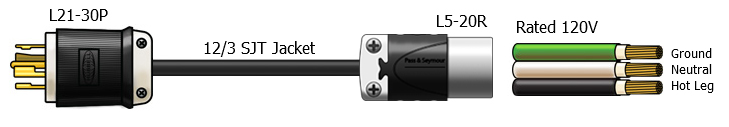

Features
- NEMA L21-30P plug to the following connectors:
- L5-20R
- 1 foot length
- Rated for 20 Amps, 120V
- Locking style
- 12/3 AWG 3-conductor wire
- Heavy-duty SJT jacket
Specifications
| Male Plug | L21-30P |
| Female Connectors | L5-20R |
| Amperage | 20 Amps |
| Voltage | 120V |
| Pins | Locking |
| Wire Gauge | 12 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/socket allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

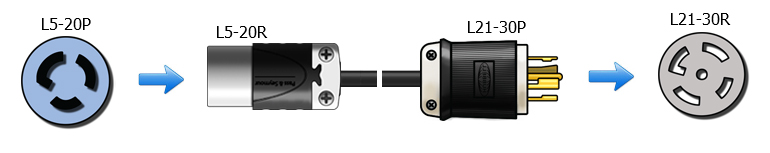

Application Shots
.jpg)
