1 foot L5-20P plug adapters allow you to plug devices with a L5-30P plug into a L5-20R outlet
NEMA L5-20P Power Cord Plug Adapters – 20A, 125V
If you have questions or need a quote, please email us at [email protected]
Overview
Use a L5-20P pigtail power adapter to plug an electronic device with an L5-30 plug on its power cord into a locking L5-20R power strip or wall outlet. Features industrial grade locking plugs and connectors and heavy-duty SJOOW oil and water resistant power cord.
.jpg){kind=small}
Features
- NEMA L5-20P plug to the following connectors:
- L5-30R
- 1 foot length
- Rated for 20A and 125V
- Straight blade style
- 12/3 AWG 3-conductor wire
- Heavy-duty SJOOW jacket
Specifications
| Male Plug | L5-20P |
| Female Connectors | L5-30R |
| Amperage | 20A |
| Voltage | 125V |
| Pins | Locking |
| Wire Gauge | 12 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/socket allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817
Aka: L5-20P pigtail adapter, L5-20P to L5-30R plug adapter, Adapt to L5-20

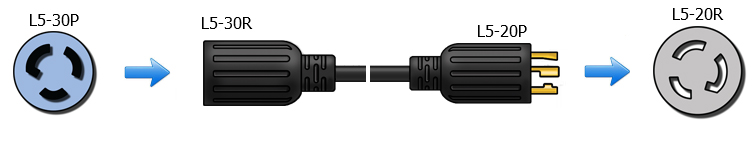

Application Shots
.jpg)
