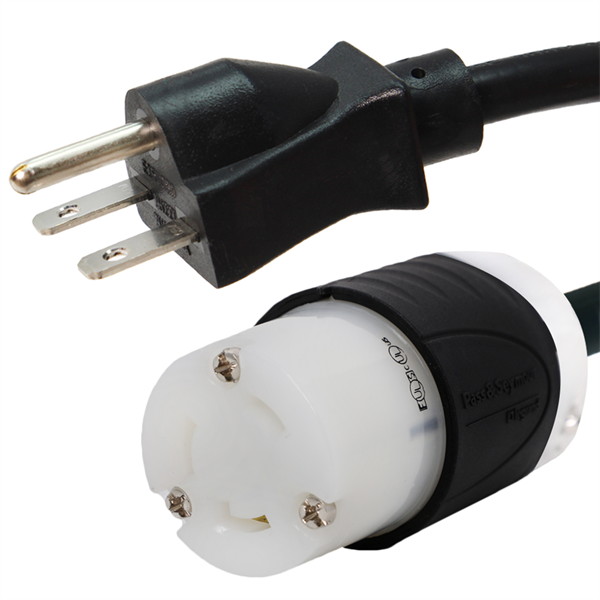

6-15P to L6-30R Plug Adapter Power Cord

6-15P plug adapters allow you to plug devices with an L6-30P plug into a 6-15R outlet

SKU: IBX-1402-01

  NEMA 6-15P Power Cord Plug Adapters – 15A, 250V

   If you have questions or need a quote, please email us at [email protected]


Overview

Use a 6-15P pigtail power adapter to plug an electronic device with a L6-30 power plug on its power cord into a standard 6-15 power strip or wall outlet.  Uses heavy-duty commercial grade wiring devices and 14/3 SJT wire.  Please call 1-800-406-8520 for custom lengths.

6-15p adapter


  Features

  • NEMA 6-15P plug to the following connectors:
    • L6-30R
  • 1 foot length (customs available)
  • Rated for 15A, 250V
  • Straight blade style
  • 14/3 AWG wire
  • Heavy-duty SJT jacket

 Specifications

Male Plug                   6-15P
Female Connectors      L6-30R
Amperage 15A
Voltage 250V
Pins Straight Blade
Wire Gauge 14/3 AWG
Length 1 foot
Color Black

Note:  Make sure your component doesn’t require more amperage than the outlet/receptacle allows

Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817

Aka: NEMA 6-15P plug adapter, 6-15 to L6-30, 6-15P to L6-30R adapter

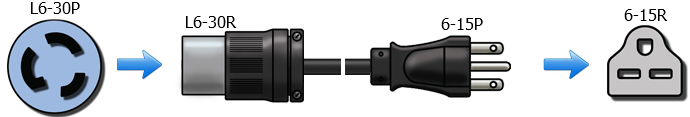

 Application Shots

nema 6 15p plug adapter
