5-15P plug adapters allow you to plug devices with an L5-30P plug into a 5-15R outlet.

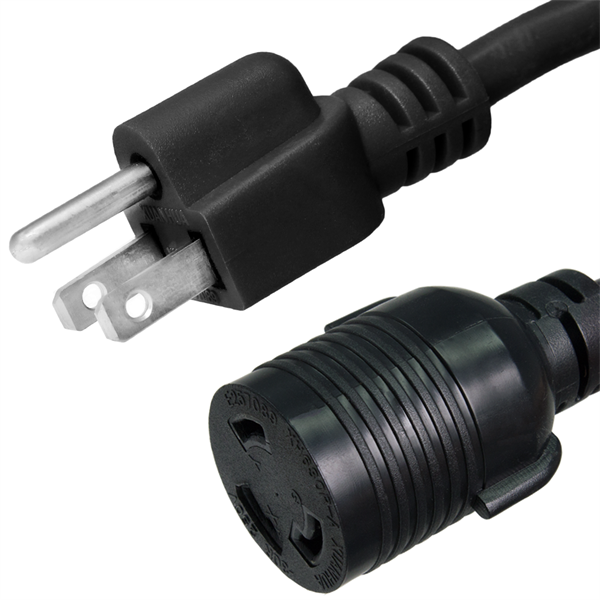

NEMA 5-15P Power Cord Plug Adapters
If you have questions or need a quote, please email us at [email protected]
Overview
Use a 5-15P plug adapter to plug an electronic device with an L5-30P plug on its power cord into a standard 5-15R 3-Prong outlet or receptacle. Made with heavy duty SJT cord and industrial data-center grade plugs and connectors. Call 1-800-406-8520 for custom lengths.
.jpg){kind=small}
Features
- NEMA 5-15P plug to the following connectors:
- L5-30R
- 1 foot length
- Rated for 15A, 125V
- Straight blade style plug
- 14/3 AWG 3-conductor wire
- Heavy-duty SJT jacket
Specifications
| Male Plug | 5-15P |
| Female Connector | L5-30R |
| Amperage | 15A |
| Voltage | 125V |
| Pins | Straight Blade |
| Wire Gauge | 14/3 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/receptacle allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJTcord made in America
Built and tested to UL standard 817
Aka: 5-15P plug adapter, 5-15 to L5-30

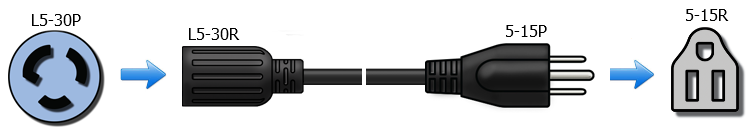

Application Shots
.png)
