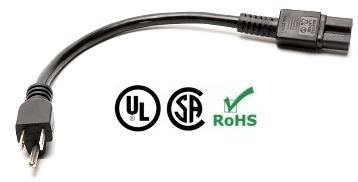

IEC 60320 15 Amp Black 5-15P To C15 Plug Adapter
5-15P to C15 Plug Adapter, 1 Foot, 15 Amps, 125V, 14/3 AWG Power Cord
 |
* 5-15P to C15 plug adapter power cord * C15 is also known as a “notched C13” * Available in custom lengths and wire AWG * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Tech Notes: 1 foot of 14/3 AWG wire w/ molded 5-15P plug and C15 connector
Applications: Adapt an IEC C14 plug to fit into a NEMA 5-15R outlet
Related Terms: C15 to 5-15P cord adapter, IEC 320 515P to C15 power cord plug adapter
Part Number: IBX-4921-XX (XX = Length)
Features
- NEMA 5-15P plug to C15 connectors
- 1 Foot Length
- SJT jacket
- Rated for 15 Amps and 125 Volts
- 14/3 AWG wire
Specifications
| Plug | NEMA 5-15P |
| Connector | IEC C15 |
| Voltage | 125V |
| Amps | 15A |
| Length | 1 Foot |
| Jacket Type | 14/3 SJT |
| Color | Black |
* SJT jacket is thicker but less flexible compared to the SVT jacket.
UL and CSA Listed, ROHS approved
Application Shots
