L5-20P connects to an L5-20R outlet. C19 connects to a C20 plug or inlet.

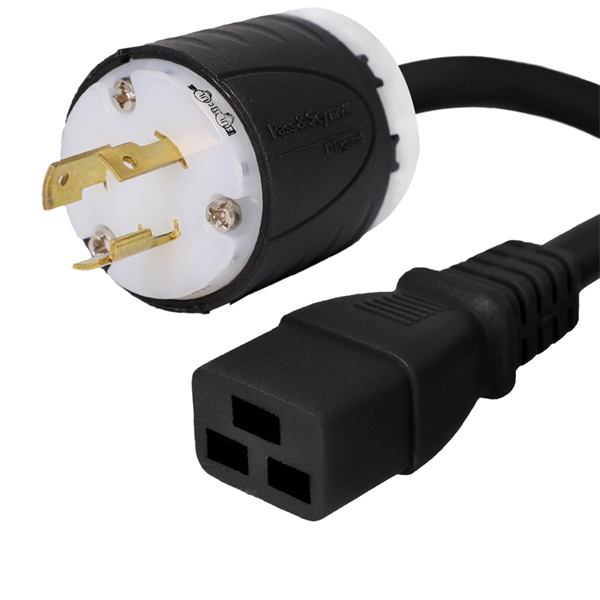

NEMA L5-20P to C19 Power Cord – 3 Foot, Rated 20A, 125V
If you have questions or need a quote, please email us at [email protected]
Overview
NEMA L5-20P to C19 power cord in an 3 foot length, rated for 20A, 125V. Insert the male plug and then twist to lock in power connections for equipment such as PDU’s, UPS, Electronic, Lighting, Generators, or servers. Call 1-800-406-8520 for custom lengths.
Features
- L5-20P to C19
- Rated for 20A/125V
- 3 Foot length
- Locking plug/IEC connector
- 12/3 AWG 3-conductor wire
- Heavy-duty SJT jacket
Specifications
| Male Plug | L5-20P |
| Female Connector | C19 |
| Amperage | 20A |
| Voltage | 125V |
| Jacket | SJT |
| Wire Gauge | 12/3 AWG |
| Length | 3 Foot |
| Color | Black |
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJT cord
Built and tested to UL standard 817
Also Known As: L5-20P to C19 Power Cord, L5-20 C19 Cable, C19 to L5-20
Application Shots
