The most versatile rack available installs on your desktop, floor-standing or wall mounted.
MMR-1820 ESSEX Multi Mount Rack by Middle Atlantic
MAP# MMR-1820 Questions? Email us at [email protected]
Overview
The MMR Series rack can be used 5 different ways: as a floor standing rack, a desktop rack, or 3 different wall mountable configurations. UL listed for 250 lbs. Multiple vents for passive ventilation and efficient airflow.
Features
- This fully welded rack can be used on your desktop, floor-standing or wallmounted in three different ways (easy access pivot, hang bracket mounting or direct-to-wall)
- Available in sizes for residential AV applications: 10, 12, 16 and 18U
- Passive ventilation with top and side vents; optional quiet fans available to increase air flow to 276 CFM
- 250 lbs of weight capacity
- UL Listed
Specifications Technical Details and Drawings:
| Overall Height | 36.4 in. |
| Usable Height | 18U |
| Overall Depth | 20 in. |
| Usable Depth | 18 in. |
| Load Capacity | 250 lbs |
| Rack Rails | Threaded 10-32 |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
Rack Part #s: Solid Door DOOR-S18, Plexi Door DOOR-P18, CASTERS-K, LEVELINGFEET-K, PWR-8-V, LACE18-2PK, FANPNL-2DC, HANG-MMR18, PIVOT-MMR-18

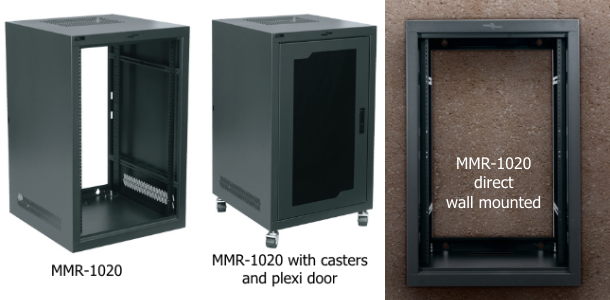

Application Shots

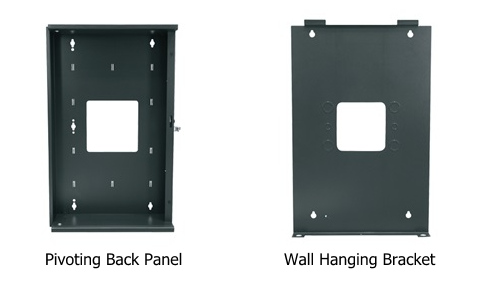

Wall Hanging Options
