PD-2015R-NS is Middle Atlantic’s horizontal/vertical multi-mount 15 AMP rackmount PDU.
Middle Atlantic PD-2015R-NS Multi-Mount 15 Amp PDU
MAP# PD-2015R-NS Questions? Email us at [email protected]
Overview
The PD-2015R-NS multi-mount power strip will mount either horizontally or vertically within a server or A/V rack. High density design features 20 NEMA 5-15R female outlets (10 front/10 rear) with one 9 foot Middle Atlantic Signal Safe power cord. Reversible and adjustable rack ears allows for 0 or 90 degree mounting.
Features
- Mounts either vertically or horizontally rackmount rails
- 9′ Signal Safe power cord with NEMA 5-15 straight-blade male plug
- 20 NEMA 5-15 receptacles – 10 in front, 20 in rear of PDU
- One 15 AM circuit
- Shallow 4 inch mounting depth
- Horizontally mounts in standard 19 inch wide racks
Specifications Technical Details and Drawings:
| Rack spacing | 1.75 in. (1U)* |
| Circuit | 15 amp |
| Power cord | 9′ NEMA 5-15P |
| Mounting width | 19.00 in. |
| Outlets | 20 x NEMA 5-15R |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
NEMA: National Electrical Manufacturer’s Association

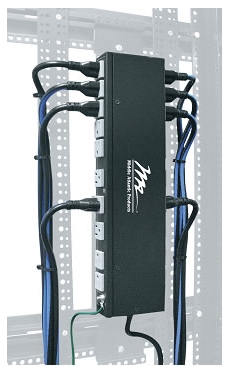

Application Shots
