21U x 17 in. deep wall mount enclosure cabinet from Middle Atlantic.
Middle Atlantic DWR-21-17 Wall Mount Cabinet
MAP# DWR-21-17 Questions? Email us at [email protected]
Overview
The DWR-21-17 is a 21U wall mounted rack from Middle Atlantic, used for mounting A/V and networking equipment. The DWR is a fully integrated solution that includes knockouts for cable management, antennas, Wiremold Raceway systems, and Middle Atlantic UCP connector panels. The zero-clearance latch allows for mounting side by side in a row, while the raised embosses on the rear panel allows for mounting powerstrips.
Features
- 21U of racking height x 17 in. of external depth
- Tool-free quickmount allows 1-person mounting
- Welded for superior strength– 200 lbs. Load capacity
- Built-in cable lacing points
- Knockouts for electrical, wire management, antennas, and UCP panels
- Front pair of adjustable 10-32 rack rails
- Center section hinges on left or right
- Includes grounding and bonding studs
- Zero-clearance latch saves space for racks mounted side by side
- 16-gauge steel construction
- 1/8 in. laser cut internal braces
Specifications Technical Details and Drawings:
| Overall height | 43.75 in. |
| Racking height | 36.75 in. (21U)* |
| Useable depth | 15.00 in. |
| Overall width | 23.40 in. |
| Mounting width | 19.00 in. |
| Weight capacity | 250 lbs |
| Finish | Black Powdercoat |
| Rails | 1 Pair of 10-32 |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
Granite gray is available, call us before ordering for instructions.

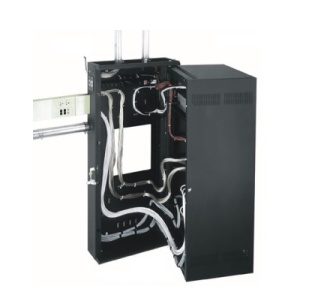

Application Shots
