16U x 19 in. W x 28 in. D compact rack for mounting small A/V, pro audio or network gear. Black laminate finish.

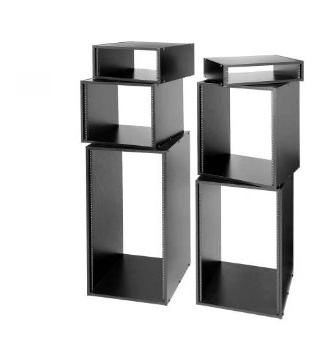

Middle Atlantic BRK16-28 BRK Series Rack
MAP# BRK16-28 Questions? Email us at [email protected]
Overview
Use the RK or BRK rack as a simple solution for mounting small A/V systems, pro-audio systems, or small data networks. The BRK16-28 has 16U of rack space with 19 inch wide 10-32 mounting rails, and 28 inches of usable depth. Available options for both the RK and BRK racks include a set of 4 caster wheels including 2 locking casters and a rear set of rails for heavier equipment. The BRK series exclusively offers a smoked tempered glass front door option for a sleek look. The black laminate finish adds some polish, making the rack suitable for studio applications or as part of a pre-configured kit.
Features
- Black woodgrain laminate finish
- Front pair of 19 in. wide 10-32 rack rails
- 16U height x 28 inches of depth
- Quick assembly with hex key hardware
- Made of furniture grade MDF board
- Comes with front and rear rails
Specifications Click for technical details and drawings:
| Overall Height | 29.63 in. |
| Usable Height | 28.00 in. (16U*) |
| Usable Depth | 28.00 in. |
| Load Capacity | 200 lbs |
| Finish | Black Laminate |
| Rack Rails | Pair of 10-32 |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
Application Shots
