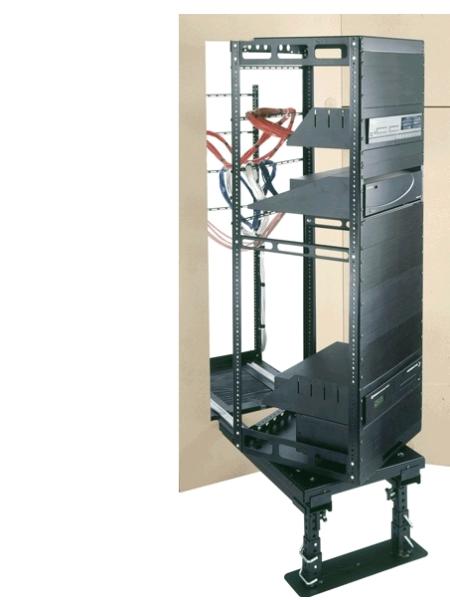

The AX-SXR-36 is a rotating version of the AXS rack. Slides out 31 inches and then rotates for rear access.
MAP# AX-SXR-36 Questions? Email us at [email protected]
With the AX-SXR series Middle Atlantic has taken the popular AXS line of slide-out in-wall racks and added the ability to also rotate the rack for even easier equipment access. The AX-SXR-36 mounts into an in-wall cut-out, millwork opening, or in a cabinet for storage and security of your electronic A/V components. The TRACK31 is required for sliding your equipment forward (sold separately). For racks mounted on a base, service stands in three different height ranges are available.
.jpg){kind=small}
- Ability to slide on a track up to 31 inches
- Entire 4-post frame rotates for rear component access
- Can be mounted from 3 in. to 40 in. high with service stand
- Two pairs of 10-32 rack rails
- Weight capacity up to 450 lbs.
- Integrated cable management system
Click for technical details and drawings:
| Overall height | 69.75 in. |
| Usable height | 63 in. (36U*) |
| Usable depth | 20 in. |
| Load capacity | 450 lbs |
| Track Length | 31in. |
| Shipping weight | 42 |
| Rack Rails | Threaded 10-32 |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
Required cut-out or millwork finished opening width is 19.25 inches.
