24U x 32 in. deep roll-out and rotate rack that allows rear equipment servicing without the need for stands or tracks.
Middle Atlantic WR-24-32 Rolling & Rotating Rack
MAP# WR-24-32 Questions? Email us at [email protected]
Overview

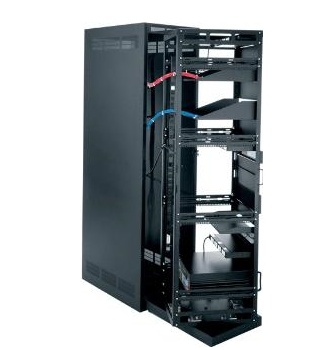

The WR-24-32 roll-out and rotate enclosure rack from Middle Atlantic gives unprecedented ease of access to your components for installation and servicing. The internal rack frame is detachable from the host enclosure for onsight installation of the cabinet with remote equipment servicing. When your equipment is installed, just slide the internal frame out and rotate for immediate access. The WR-24-32 features 26 inches of internal mounting depth, allowing for storage of any A/V component. Many engineered solutions are designed into the rack for robust thermal and cable management options.
Features
- Slides out and rotates for enhanced equipment and wiring access
- Two pairs of threaded 10-32 rails, marked with RMU spacing
- Several vents built in for increased passive air flow
- 19 inch wide mounting rails
- Knock-outs included for ganging multiple racks together
- 750 lbs weight capacity
- Rear access panels used for security and extra thermal management
Specifications Click for technical details and drawings:
| Overall Height | 53.81 in. |
| Usable Height | 42.00 in. (24U*) |
| Usable Depth | 26 in. |
| Load Capacity | 750 lbs |
| External Depth | 32.88 in. |
| Shipping Weight | 165 lbs |
| Rack Rails | 2 pairs of 10-32 |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
Application Shots
