A horizontal rackmount power strip from Middle Atlantic PDS-1620R-NS – Outlets = 5-20R x 16 (8 Front/8 Rear), 5-20P on 9 foot cord.
Middle Atlantic PD-1620R-NS 20 Amp Rackmount Power Strip
MAP# PD-1620R-NS Questions? Email us at [email protected]
Overview
Mount the PD-1620R-NS horizontally to a rack rail in a standard data or audio/video cabinet. Includes surge suppression and EMI filtering. Rackrail bracket mounting hardware is included.
Features
- Sixteen NEMA 5-20R female receptacle/outlets (rear outlet x 8, front outlet x 8)
- 15 AMP circuit breaker
- Includes surge protection and EMI filtering
- Front power switch
- Occupies 1RMU
- 9 foot power cord with standard NEMA 5-20P male 3-prong plug
- Frame is black, duplex outlets are gray
- UL listed
- Black powder coated finish
Specifications Technical Details and Drawings:
| Outlets | 9 NEMA 5-20R |
| Outlet locations | 8 Front / 8 Rear |
| Circuit protection | 20 Amp |
| Cord/Plug | 9′ NEMA 5-20P |
| Cord Gauge | 14 AWG |
| Finish | Black Powdercoat |

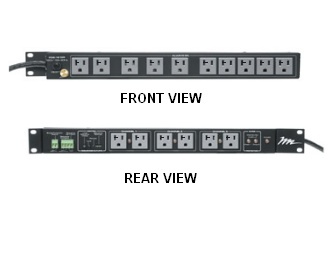

Application Shots
