Used to connect newtwork components to a 5-20R wall outlet or power strip

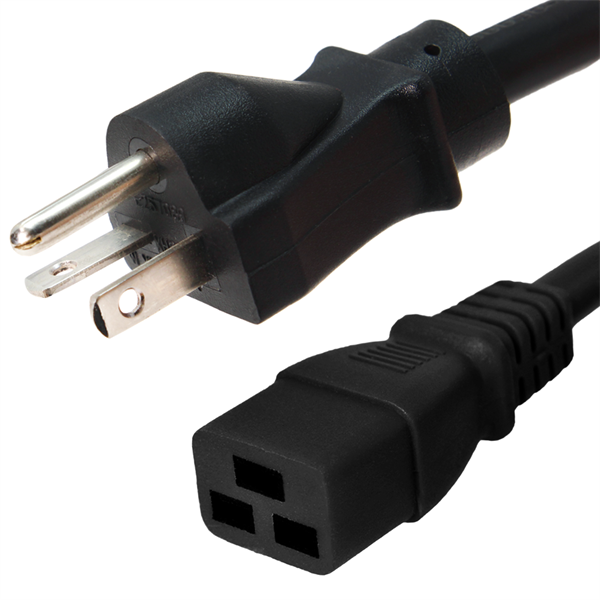

NEMA 5-20P to C19 Power Cords, 20A/125V 12 AWG
Overview
NEMA 5-20P power cord plugs into a 5-20R outlet or power strip. The IEC C19 connector mates with a C20, typically found on computer and network equipment power supplies. These 5-20P to C19 cords are 15A, 125V.
Features
- NEMA 5-20P plug to IEC C19 connectors
- 8 Foot Length
- SJT jacket
- Rated for 20 Amps and 125 Volts
- 12/3 AWG wire
Specifications
| Plug | NEMA 5-20P |
| Connector | IEC C19 |
| Voltage | 125V |
| Amps | 20A |
| Length | 8 Foot |
| Jacket Type | 12/3 SJT |
| Color | Black |
* SJT jacket is thicker but less flexible compared to the SVT jacket.
UL and CSA Listed, ROHS approved
Application Shots
