Adapt an L15-30P plug to fit an L15-20R 3-phase receptacle

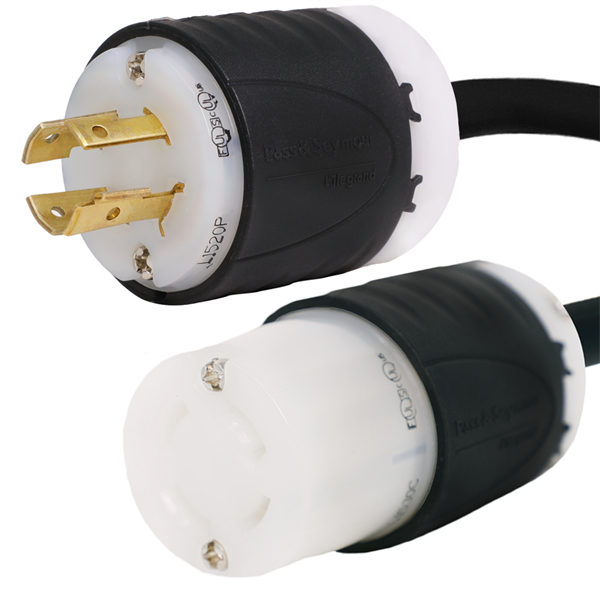

NEMA L15-20P to L15-30R Power Cord Adapter
If you have questions or need a quote, please email us at [email protected]
Overview
Use an L15-20P to L15-30R pigtail power cord plug adapter to plug a device with an L15-30P plug into an L15-20R receptacle. Uses heavy-duty commercial grade wiring devices and 10/4 STO wire. Please call 1-800-406-8520 for custom lengths.
.jpg){kind=small}
Features
- NEMA L15-20P plug to L15-30R connector
- 1 foot length (customs available)
- Rated for 20A, 250V
- Straight blade style
- 10/4 AWG wire
- Heavy-duty STO jacket
Specifications
| Male Plug | L15-20P |
| Female Connectors | L15-30R |
| Amperage | 20A |
| Voltage | 250V |
| Pins | Twist-Lock |
| Wire Gauge | 10/4 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/receptacle allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty STO cord made in America
Also Known As: L15-20 to L15-30R Adapter, 3 Phase 250V Plug Adapter
Application Shots
