21U x 25″ D Pre-Configured ERK A/V Rack from Middle Atlantic
Middle Atlantic ERK-2125-CONFIG – 21U A/V Rack
MAP# ERK-2125-CONFIG Questions? Email us at [email protected]
Overview
Middle Atlantic’s ERK-2125-CONFIG features everything you need for a complete out-of-the-box A/V rack enclosure system. Includes: vented 2-point rack shelves, vent panels, front/rear 10-32 rack rails, filtererd 15A surge protector power strip, fine floor caster base, and cable management bars.
Features
- 21U of rack spacing, 25 inches of depth
- Solid rear door, solid side panels and top panel
- Standard 19 inch wide rackmounting
- Tapped 10-32 rails
- 2500 lbs weight capacity
- Ships with: 3 vented shelves, 3 vent panels, 10-outlet power strip, 4 offset bars
Specifications Click for technical details and drawings:
Overall Height | 40.87 in. |
Usable Height | 36.75 in. (21U*) |
External Width | 22.16 in. |
Depth | 25 inches |
Load Capacity | 2500 lbs. |
Color | Black |
Rack Rails | Tapped 10-32 |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm

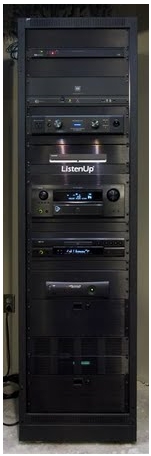

Application Shots
