40U x 25 inch deep fully configured ERK audio/video rack system
Middle Atlantic ERK-4025-AV 40U Configured A/V Rack
MAP# ERK-4025-AV Questions? Email us at [email protected]
Overview

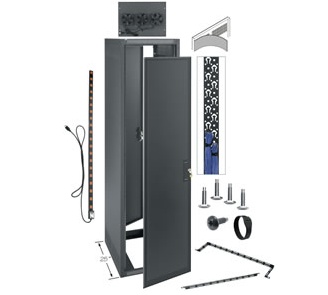

Middle Atlantic’s Configured ERK-4025-AV rack ships with just about everything needed for a fully functional rack mount system. Rack height is 40U with depth of 25 inches. Fully welded side panels, solid front locking/rear vented doors and integrated top panel give you a fully secure and enclosed rack. Additions include 2 x 20 amp power strips, a robust cable management system, and leveling feet.
Features
- Integrated top fan panel
- Locking front door, rear door vented at bottom
- Welded side panel w/ vent blocking kit for thermal management
- 3/4" wide cable lacer strip, six lacer bars, 12 Velcro ties
- 10 receptacle vertical power strip rated for 20 amps (2)
- Includes leveling feet and 100 x 10-32 rack screws
Specifications Click for technical details and drawings:
| Overall Height | 74.13 in. |
| Usable Height | 70.00 in. (40U*) |
| Total Depth | 25 inches |
| Load Capacity | 2500 lbs |
| Outer Width | 22.16 inches |
| Rack Rails | 10-32 threaded |
*Note: 1U (rack unit) equals 1.75 in. or 4.445 cm
All ERK enclosures are finished in a durable black powdercoat finish
