Save space and eliminate noise with Signal Safe 1-15P/C7 power cords
Middle Atlantic IEC Signal Safe Power Cables
Questions? Email us at [email protected]
Overview
Use Middle Atlantic’s NEMA 1-15P to polarized IEC C7 signal safe power cords to clean up installations in the back of your rack and eliminate AC magnetic fields with their tightly twisted braid design. Used for cable and satellite DVR box connections. Cords are available in 6, 12, 18, 24, 36 and 48 inch lengths. Packaged in contractor packs of 20.
Features
- NEMA rated 1-15P 2-prong plug to polarized IEC C7 connector
- Tightly twisted braid design virtually eliminates inteference
- Rated for 7A
- 18/3 AWG SJT wire
- UL listed and RoHS approved
Specifications Click to view the technical PDF file:
| Male End | 1-15P |
| Female End | C7 Polarized |
| Jacket | SVT |
| Amps | 7A |
| Wire Gauge | 18 AWG |
| Conductors | 3-wire |
| Color | Black |
| Quantity | 20 Packs |
* SVT jacket is thinner and more flexible compared to the SJT jacket.
** Use specifically for hook-ups on cable and satellite DVR boxes

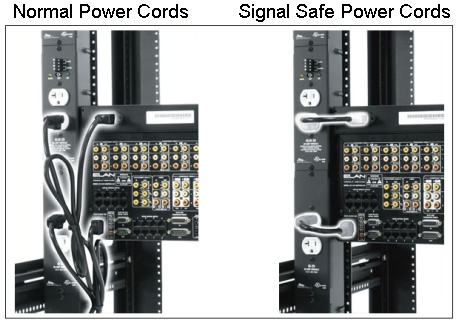

Application Shots
