Power cables rated 15 amps and 250V, used primarily in computer/server applications

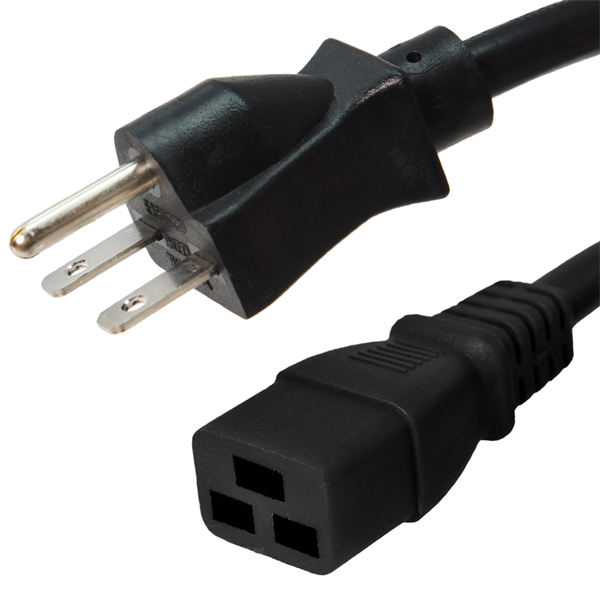

NEMA 6-15 Plug to IEC 60320 C19 Connector Power Cords
Overview
NEMA 6-15P power cord plugs into are used to connect computers to a server. The IEC C19 connector mates with a C20, typically found on computer and network equipment power supplies. These 6-15P to C19 cords are 15A, 250V.
Features
- NEMA 6-15P plug to C19 connectors
- 6 Foot Length
- SJT jacket
- Rated for 15 Amps and 250 Volts
- 14/3 AWG wire
Specifications
| Plug | NEMA 6-15P |
| Connector | IEC C19 |
| Voltage | 250V |
| Amps | 15A |
| Length | 6 Foot |
| Jacket Type | 14/3 SJT |
| Color | Black |
* SJT jacket is thicker but less flexible compared to the SVT jacket.
UL and CSA Listed, ROHS approved
Application Shots
