L5-30P plug adapters allow you to plug devices with a 5-15/20 plug into a L5-30R outlet

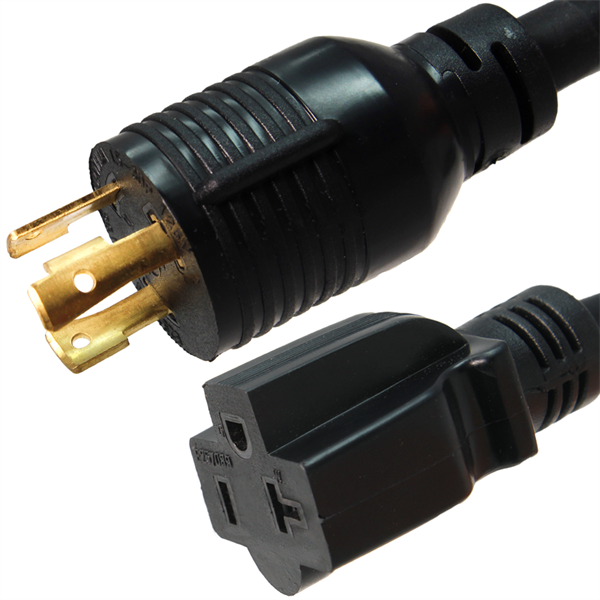

NEMA L5-30P Power Cord Plug Adapters
If you have questions or need a quote, please email us at [email protected]
Overview
Use an L5-30P pigtail power adapter to plug a device with a 5-15P or 5-20P into a device with an L5-30R power strip receptacle or wall outlet. Uses heavy-duty commercial grade cord ends, and SJOOW water and oil resistant cord.
.jpg){kind=small}
Features
- NEMA L5-30P plug to the following connectors:
- 5-15/20R
- 1 foot length
- Rated for 20A
Locking plug style - 12/3 AWG wire
- Heavy-duty water and oil resistant SJOOW jacket
Specifications
| Male Plug | L5-30P |
| Female Connectors | 5-15/20R |
| Amperage | 20A |
| Voltage | 125V |
| Pins | Locking |
| Wire Gauge | 12/3 AWG |
| Length | 1 foot |
| Color | Black |
Note: Make sure your component doesn’t require more amperage than the outlet/socket allows
Technical Notes: Uses industrial grade twist locking plugs and connectors
Heavy-duty SJOOW cord made in America
Built and tested to UL standard 817
Aka: NEMA L5-30P pigtail adapter, L5-30 power cord adapters

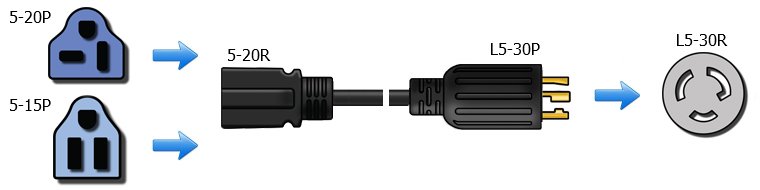

Application Shots
.jpg)
