NEMA 6-20P Power Cords
NEMA 6-20P power cords feature a straight blade pin formation with a ground, horizontal blade, and vertical blade. Standard molded lengths are available for same day shipping if ordered by 4PM EST. Custom UL listed 6-20 power cables are also available, and usually ship wtihin 24 hours.
Please contact us at 1-800-406-8520 if you need a quote or technical assistance.
NEMA 6-20 Extension Power Cords
| Vendor |
Plug |
Connector | Amps | Voltage | Length | Part # |
| Iron Box |
6-20P | 6-20R | 20A | 250V | 3 Foot |
IBX-6153-03 |
| Iron Box | 6-20P | 6-20R | 20A | 250V | 6 Foot | IBX-6153-06 |
| Iron Box | 6-20P | 6-20R | 20A | 250V | 10 Foot | IBX-6153-10 |
| Iron Box | 6-20P | 6-20R | 20A | 250V | 15 Foot | IBX-6153-15 |
| Iron Box | 6-20P | 6-20R | 20A | 250V | 25 Foot | IBX-6153-25 |
NEMA 6-20P to C19 Power Cords
| Vendor |
Plug |
Connector | Amps | Voltage | Length | Part # |
| Iron Box |
6-20P | C19 | 20A | 250V | 1 Foot |
IBX-4937-01 |
| Iron Box | 6-20P | C19 | 20A | 250V | 3 Foot | IBX-4937-03 |
| Iron Box | 6-20P | C19 | 20A | 250V | 8 Foot | IBX-4937-08 |
| Iron Box | 6-20P | C19 | 20A | 250V | 15 Foot | IBX-4937-15 |

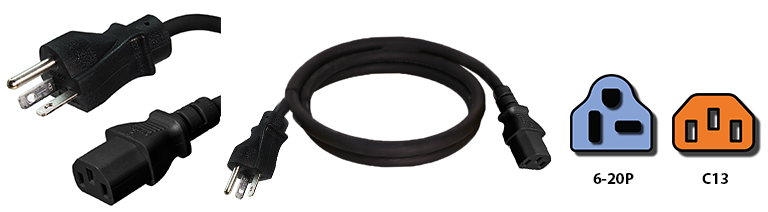

NEMA 6-20P to C13 Power Cords
| Vendor |
Plug |
Connector | Amps | Voltage | Length | Part # |
| Iron Box |
6-20P | C13 | 15A | 250V | 1 Foot |
IBX-4936-01 |
| Iron Box | 6-20P | C13 | 15A | 250V | 2 Foot |
IBX-4936-02 |
| Iron Box | 6-20P | C13 | 15A | 250V | 3 Foot | IBX-4936-03 |
| Iron Box | 6-20P | C13 | 15A | 250V | 4 Foot | IBX-4936-04 |
| Iron Box | 6-20P | C13 | 15A | 250V | 6 Foot | IBX-4936-06 |
| Iron Box | 6-20P | C13 | 15A | 250V | 10 Foot | IBX-4936-10 |
| Iron Box | 6-20P | C13 | 15A | 250V | 15 Foot | IBX-4936-15 |
| Iron Box | 6-20P | C13 | 15A | 250V | 25 Foot | IBX-4936-25 |
